Operator overloading in Python - a matrix example

Operator overloading allows us to add functionality to our own classes so that they can support standard Python operators such as +, -, etc.

We will illustrate this using the example class Matrix, a 2 by 2 matrix.

My book Functional Programming in Python is available from my store or Amazon.

Adding two matrices

In high school maths, we learned how to add two matrices. If we wanted to do this in Python, the most obvious way to do this would be to define an add function:

p = Matrix(1, 2, 3, 4)
q = Matrix(5, 6, 7, 8)
r = p.add(q)

That is ok, but it would be nice if we could write:

p = Matrix(1, 2, 3, 4)
q = Matrix(5, 6, 7, 8)
r = p + q

Well we can! In fact, we can override all the arithmetic operators if we wish. In this section, we will look at +, -, and *, but the technique can apply to any operator.

How matrix addition works

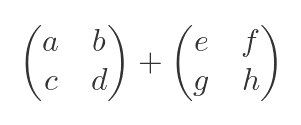

Just to recap the basics of matrix algebra, the sum of two matrices:

is:

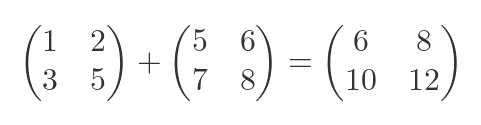

So in our example, the expected result would be:

Overloading the addition operator

We can override the addition operator for a class by providing an __add__ method:

class Matrix:

    def __init__(self, a, b, c, d):
        self.data = [a, b, c, d]

    def __add__(self, other):
        if isinstance(other, Matrix):
            return Matrix(self.data[0] + other.data[0],
                          self.data[1] + other.data[1],
                          self.data[2] + other.data[2],
                          self.data[3] + other.data[3])
        else:
            return NotImplemented

The __add__ method accepts a parameter other. We first check if other is a Matrix. If it is, the method creates a brand new Matrix object whose elements are formed by adding the elements of other to self.

If other is not a Matrix, our code doesn’t know how to handle it. In that case, we must return NotImplemented. Python can then decide what to do (this is covered in more detail below).

Here is how this is used:

p = Matrix(1, 2, 3, 4)
q = Matrix(5, 6, 7, 8)
r = p + q
print(r)

We create two matrices, p and q. We then perform the calculation p + q. This calls the __add__ method on the first object p, passing the second object r as the other parameter.

The __add__ function returns a Matrix that is the result of the addition, and this gets assigned to r. The result is printed:

[6, 8][10, 12]

Negation

We could also implement matrix subtraction by overriding the - operator. We do this by adding a __sub__ method that works in a similar way to __add__, but subtracts instead. We won’t show that here, it is very similar to the addition code above.

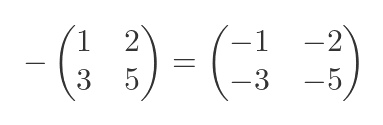

But the - operator has a second meaning, it can be used to negate a value. For example if a = 5 then -a = -5. We say negation is a unary operator, because it works on a single value. For a matrix, it works like this:

We can add support for negation by defining an __neg__ method like this:

class Matrix:

    def __init__(self, a, b, c, d):
        self.data = [a, b, c, d]

    def __neg__(self):
        return Matrix(-self.data[0],
                      -self.data[1],
                      -self.data[2],
                      -self.data[3])

We simply return a new matrix that negates the values of the existing matrix. Notice that the __neg__ method doesn’t accept an other parameter (because it is a unary operator), and it cannot fail with a NotImplemented error because every matrix can be negated.

Of course, for a fully implemented Matrix class, we should support subtraction and negation. To do this, we just need to implement __sub__ and __neg__. When the Python interpreter encounters a - sign applied to a Matrix, it will decide whether it is subtraction or negation, and call the correct method. Our code doesn’t need to worry about that, it is the Python interpreter’s job.

Matrix multiplication

Matrix multiplication is a more interesting case, because you can multiply a matrix by another matrix, or alternatively you can multiply it by a scalar (ie an ordinary number).

Multiplying a matrix by a matrix

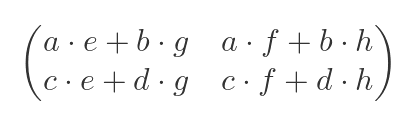

The product of two matrices:

is:

Multiplying a matrix by a scalar

You can also multiply a matrix by a scalar (an ordinary number n):

giving:

Overloading the multiply operator

Here is a version of the Matrix class with an implementation of __mul__ (which gets called for any multiply operation involving a matrix):

class Matrix:

    def __init__(self, a, b, c, d):
        self.a = a
        self.b = b
        self.c = c
        self.d = d

    def __mul__(self, other):
        if isinstance(other, (int, float)):
            return Matrix(self.data[0] * other,
                          self.data[1] * other,
                          self.data[2] * other,
                          self.data[3] * other)
        elif isinstance(other, Matrix):
            return Matrix(self.data[0] * other.data[0] + self.data[1] * other.data[1],
                          self.data[0] * other.data[1] + self.data[1] * other.data[3],
                          self.data[2] * other.data[0] + self.data[3] * other.data[1],
                          self.data[2] * other.data[1] + self.data[3] * other.data[3])
        else:
            return NotImplemented

If you look at __mul__, you will see that the first thing we do is to check if other is a scalar. We do this by checking if it is an instance of int or float (you could also check other number types, such as complex, if you want the Matrix class to support them, but we won’t do that in this example).

If the value is a number, we execute the code for the scalar multiplication equation above.

If the value is not a scalar, we check if it is a Matrix, and execute the code for the matrix multiplication equation above.

If the value is neither a number nor a Matrix, we return NotImplemented.

Here is an example:

p = Matrix(1, 2, 3, 4)
q = Matrix(5, 6, 7, 8)
print(p*2)
print(p*q)

This prints

[2, 4][6, 8]
[17, 22][39, 50]

As expected.

Reversing the arguments

What if we try to do this:

print(2*p)

Unfortunately, our existing code doesn’t quite cope with this situation. We get an error:

TypeError: unsupported operand type(s) for *: ‘int’ and ‘Matrix’

So what has happened here? We are trying to multiply 2*p:

• Python looks at the first value, 2, which is an int.

• It calls int.__mul__ passing in the second value p, which is a Matrix.

• Since int is a built-in type, its __mul__ function knows nothing about our Matrix type, so it returns NotImplemented.

You might think that Python would give an error at this point, but actually, it tries one last thing:

• Python checks if the second argument p has a __rmul__ method. If not, it gives an error.

• It calls p.__rmul__ passing in the first value 2.

• If p.__rmul__ can handle an integer type, the value will be calculated.

• If not, p.__rmul__ returns NotImplemented and Python gives an error.

So, we can handle this extra case by implementing __rmul__ for our Matrix class:

    def __rmul__(self, other):
        if isinstance(other, (int, float)):
            return Matrix(self.data[0] * other,
                          self.data[1] * other,
                          self.data[2] * other,
                          self.data[3] * other)
        else:
            return NotImplemented

In this case, self is the second operand p, and other is the first operand 2. This is because __rmul__ reverses the arguments.

Since other is an int, our code executes and creates the correct result. In this case, the code for handling numbers is identical in __mul__ and __rmul__ because for matrices, p*2 and 2*p are the same. That won’t be true for all data types and all operators, of course.

Notice that if both operands are of type Matrix, the case will always be handled by __mul__, so there is no need to handle that case in __rmul__. This is generally true for all data types and operators.

Error checking

What if we try something crazy like, multiplying a matrix p by a string value:

print(p*’abc’)

Our __mul__ code checks the type of the other value. It isn’t a number, it isn’t a Matrix, so we return NotImplemented.

Python will then check if str has an __rmul__ method. It does, but it can’t handle our Matrix type, so again it returns NotImplemented. Python gives an error in that situation, as you would expect, because the expression cannot be evaluated.

In-place operators

There is an additional case to consider, the in-place operators such as += and *=. They are covered in a separate article

Summary of operators

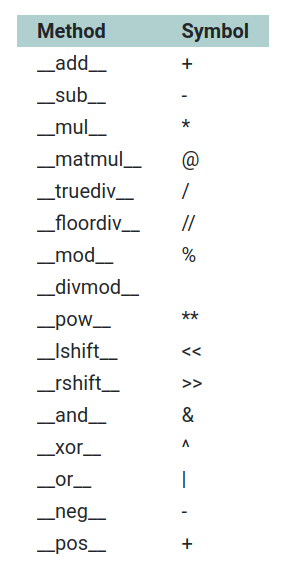

Here is a summary of the available numerical operators:

Some of these need a bit more explanation:

• __truediv__ corresponds to the / operator, which usually results in a floating point value. __floordiv__ corresponds to the // operator which usually results in an integer value. If you want your class to support both types of division, you must implement both methods. For our Matrix class, we might decide that only true division is required.

• __matmul__, the @ operator, is a special operator that is not implemented by any of the Python built-in types. It is called __matmul__ because it is used by NumPy to implement matrix multiplication. But it can be used for anything, so if you have a class that has a special operation that doesn’t match any of the other magic methods, you can use __matmul__.

• __divmod__ is a magic method that doesn’t correspond to any existing Python symbol. The built-in function divmod(a, b) returns two values, the floor divide a//b and the modulus a%b. If you implement this method, your class will work correctly when it is passed into the divmod function.

• __neg__ is a unary - operator, as discussed earlier.

• __pos__ is a unary + operator. It is included as the equivalent of __neg__ for the + operator. In most cases, it has no effect, for example, +3 is exactly the same as 3. If you write your own classes, it is possible to give + a special meaning, so that +x will affect the value of x, although this could cause confusion because the operator usually has no effect.
